OctoPrint Bed Level Visualizer

A level bed is the first step in achieving high-quality prints. If the bed isn’t level, the first layer won’t adhere to the bed properly and the print will have a high chance of failure. That’s why I suggest you use the OctoPrint Bed Level Visualizer plugin to get your bed perfectly level.

The OctoPrint Bed Level Visualizer plugin provides a visual representation of your printer’s bed level. It shows a 3D mesh of your bed’s surface, highlights any inconsistencies, and helps you make necessary adjustments where needed.

Bed leveling is basically the process of making sure that the print bed is perfectly aligned with the nozzle. It’s important to make sure the first layer of filament adheres properly to the bed.

An uneven bed can cause a lot of problems, like poor adhesion, warping, or even complete print failures. So to save you time and money, it’s important to check the bed level regularly. The Bed Level Visualizer helps a lot with the process.

Key Features of the Bed Level Visualizer

It provides a clear visual representation of the bed level in extreme detail.
The interactive interface allows for easy navigation and analysis of bed level data.
It’s compatible with most 3D printers supported by OctoPrint.

Installation of OctoPrint Bed Level Visualizer

Make sure your printer is connected to OctoPrint and supports bed leveling data. You may need to enable specific G-code commands in your printer’s firmware to send bed level data to OctoPrint.

Of course, you’ll need to have OctoPrint installed. If you don’t, I have a comprehensive installation guide you can refer to. With OctoPrint installed, you can install the plugin. Here’s the guide on how to install the Bed Level Visualizer plugin.

After you’ve installed the plugin, you’ll need to configure it to communicate with your 3D printer. This involves setting up the plugin to receive and interpret bed level data from your printer. This is all covered in the guides I’ve linked to above.

Analyzing the Results

After the plugin has run through the test, the visualizer displays a 3D mesh with color-coded height variations. This is how to interpret the data:

Level Spots (Green): Green areas indicate level regions where the bed height is optimal.

High Spots (Red): Red regions indicate that the nozzle is too close to the bed, which causes filament extrusion problems or results in the filament being squished too thin. This can cause the surface to be rough or clog the nozzle.

Low Spots (Blue): Low spots mean that the nozzle is too far from the bed. This leads to poor adhesion and gaps in the first layer and results in parts of the print lifting off the bed. This can result in warping or print failures.

My Results

Glass Bed Printer: My glass bed showed minor inconsistencies, indicating a relatively level surface. The glass tends to mitigate minor bed warping.

Magnetic Build Plate Printer: The Ender 3 with a magnetic build plate revealed significant discrepancies, suggesting manual adjustments were needed. This visualization pinpointed the back left corner being too high and the front right corner too low.

Common Patterns and Solutions

Certain patterns in the mesh can indicate specific bed leveling issues. Here are some common issues and their typical causes, along with how to address them.

Warped Corners

If the corners of the bed appear higher or lower than the center, it could be due to the bed itself being warped or an uneven surface below the bed.

In this case, you can try using shims to adjust the height of the corners. If that doesn’t work, consider replacing the bed if the warping is too severe.

Uneven Surfaces

Random high and low spots scattered across the bed could be caused by an uneven build plate or inconsistent tightening of the leveling screws.

Adjust the leveling screws in small increments and make sure they are tightened evenly. It’s also good to check for debris under the bed that could cause unevenness.

Tilted Bed

If one side of the bed always seems to be higher or lower than the other, it could be because the bed is not properly leveled relative to the printer’s frame.

Adjust the leveling screws on the lower side to raise it or on the higher side to lower it and check the bed mounts to ensure they are secure and even.

Place thin pieces of material, called shims, under the low spots of the bed to raise them up.

For high spots, ensure that the bed is properly secured, and consider gently sanding down any particularly high areas if you need to.

Make small adjustments to the leveling screws, one at a time, and re-run the bed leveling test to see if the changes made any effect.

Use a feeler gauge to measure the gap between the nozzle and the bed at multiple points to ensure uniform distance.

OctoPrint Bed Level Visualizer Advanced Features

Customization Options

The Bed Level Visualizer provides a range of customization options to enhance its usability and effectiveness. Users can adjust the mesh density, which determines the level of detail displayed in the visualization.

By increasing the mesh density, you can achieve a more granular and precise representation of the bed level, allowing for more accurate adjustments and troubleshooting. Conversely, reducing the mesh density can simplify the visualization, making it easier to interpret at a glance.

Integration with Other OctoPrint Plugins

The Bed Level Visualizer integrates smoothly with other OctoPrint plugins and makes your 3D printing workflow much easier and more productive. By working with monitoring plugins, you’ll have real-time tracking of printer performance, while integration with control plugins lets you adjust bed level alongside other settings like nozzle height and print speed.

In short, this plugin streamlines the printing process, reduces manual adjustments, and improves print quality and efficiency.

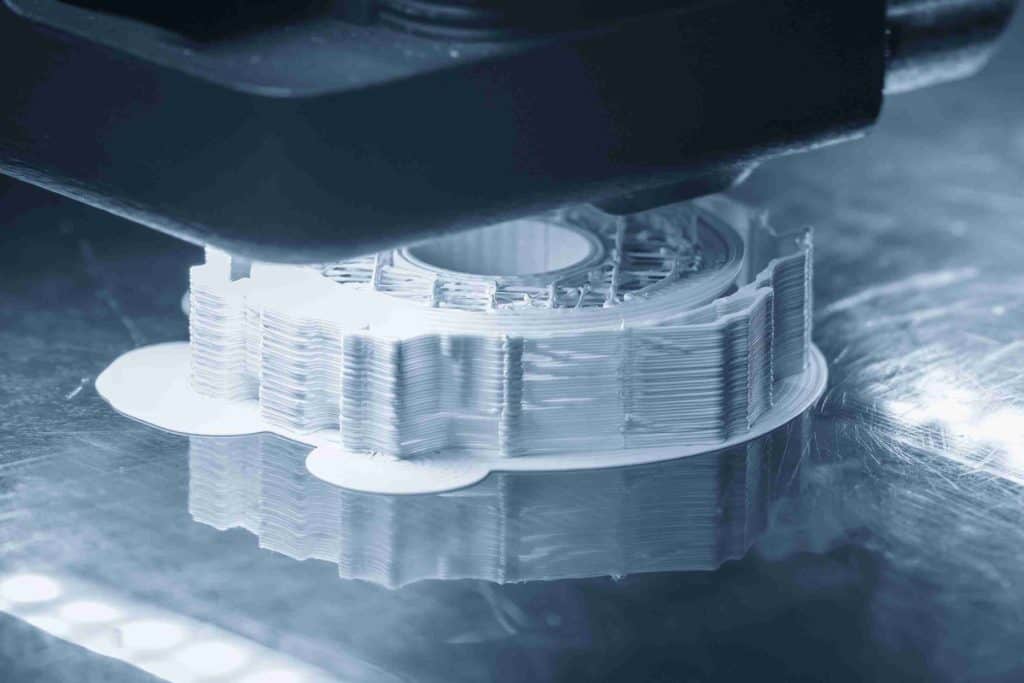

Close up of 3D printer bed printing brim

Troubleshooting Common Issues

Incorrect bed mesh

If the bed mesh looks wrong or skewed in some way, make sure your printer supports bed mesh leveling and that it’s properly configured. After that, use the G29 command to start a new mesh and check that it matches up to your printer and bed.

Incomplete or no data returned

If the visualizer fails during the process or doesn’t produce any data, ensure that you have the right start G-code sequence in the plugin settings. This normally includes G28 to home all axes filled by the G29 for bed leveling. It’s also a good idea to check your terminal tab within OctoPrint to make sure that the G29 command outputs a mesh.

Communication errors

When receiving errors in the terminal showing failed commands or communication timeouts, verify that the USB between the Raspberry Pi and printer is stable. Make sure to use a high-quality USB cable as some cheaper cables won’t work. You can also increase the baud rate in OctoPrint to improve communications.

Compatibility issues

The plugin may not work on certain firmware versions or printers. In this case, ensure that your firmware is up to date and also check the plugin documentation to see if there are any specific firmware requirements that you need to have. Sometimes you can update or even downgrade the firmware to resolve the problem.

Missing or corrupt plugin files

Sometimes the plugin could fail to load or even crash frequently. In this case, reinstall the plugin to ensure that all the files needed are properly installed. You can also check the OctoPrint logs to see if there are any errors related to the plugin and address them.

Inconsistent results

If the visualizer is giving you different results every time you run it, make sure that your printer bed is secure. Check if there’s any play in the bed or the Z-axis. Inconsistent results are normally due to mechanical issues. So it’s best to check for any loose screws or belts and make sure they’re tight.

Benefits of Using Bed Level Visualizer

These are the main two benefits of the Bed Level Visualizer plugin.

Improved Print Quality

The visualizer helps you achieve a perfectly leveled bed by providing a detailed visual representation of your bed level which leads to better print adhesion and quality.

Reduced Print Failures

A leveled bed reduces the likelihood of print failures, saving you time and material. The visualizer helps identify and correct leveling issues before they cause problems.

Tips for Effective Bed Leveling

Best Practices for Manual Bed Leveling

For accurate leveling, use a feeler gauge to measure the gap between the nozzle and the bed.

Make small adjustments to the leveling screws to avoid going overboard.

Community and Support

Join online forums and social media groups dedicated to OctoPrint users. These communities are valuable resources for troubleshooting, tips, and plugin recommendations.

Accessing Online Resources and Forums

Leverage online resources such as YouTube tutorials, official documentation, and user forums to get the most out of your Bed Level Visualizer.

In Summary

The OctoPrint Bed Level Visualizer is an essential tool for achieving the perfect print bed alignment, which is crucial for high-quality 3D printing. By providing a clear and detailed 3D mesh visualization of your printer’s bed surface, this plugin helps identify and correct inconsistencies, ensuring optimal adhesion and reducing print failures.

Its integration with other OctoPrint plugins enhances the overall printing workflow, allowing for real-time monitoring and precise adjustments. With features like customizable mesh density and color schemes, the Bed Level Visualizer offers a tailored user experience.

Whether you are manually leveling your bed or using automatic sensors, this tool is invaluable for maintaining print quality and efficiency. Leveraging community support and online resources can further enhance your use of the Bed Level Visualizer, making it a must-have for any serious 3D printing enthusiast.
